Vamos con un poco de «aeroporn» de Xavier Gàzquez.

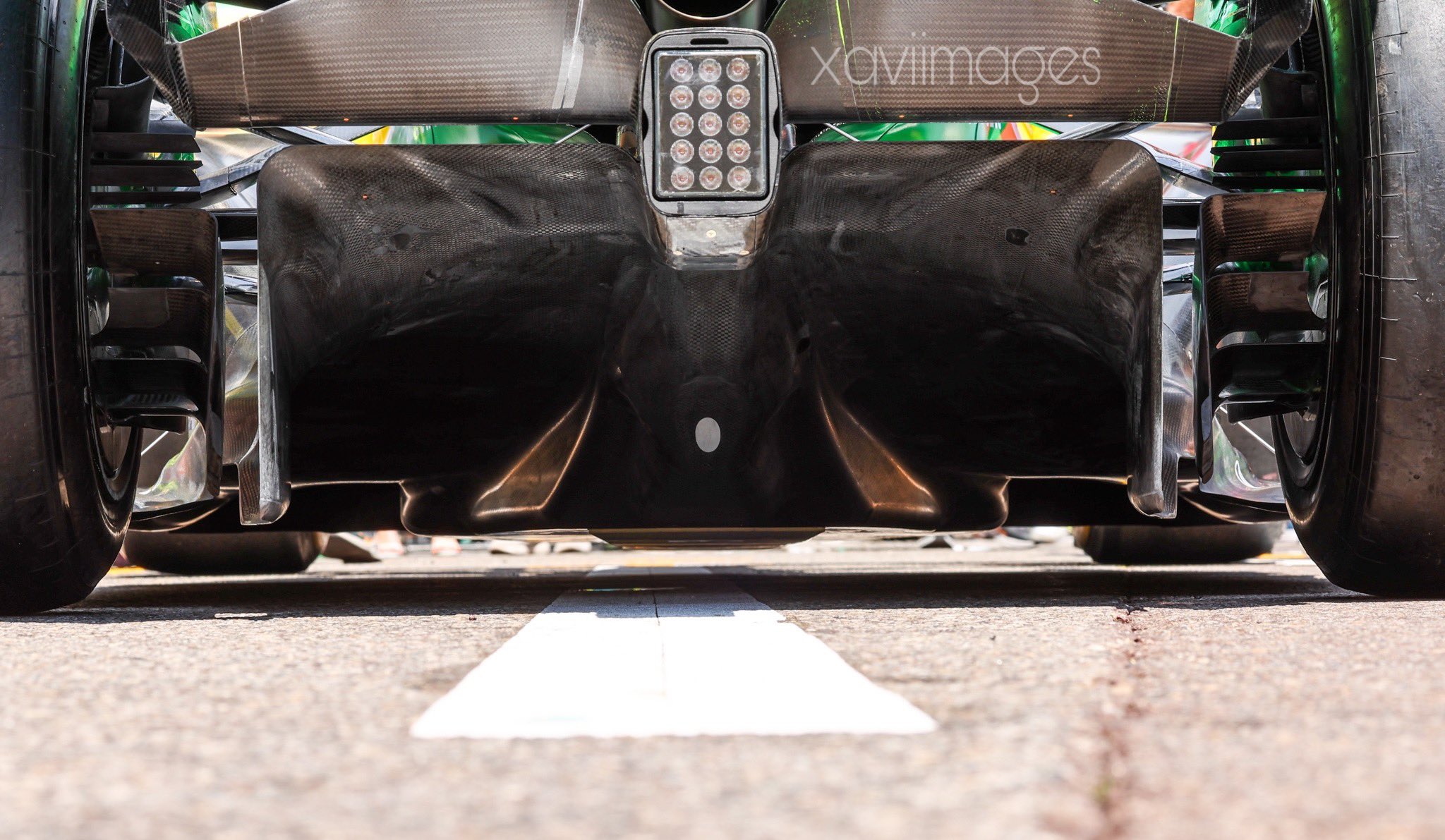

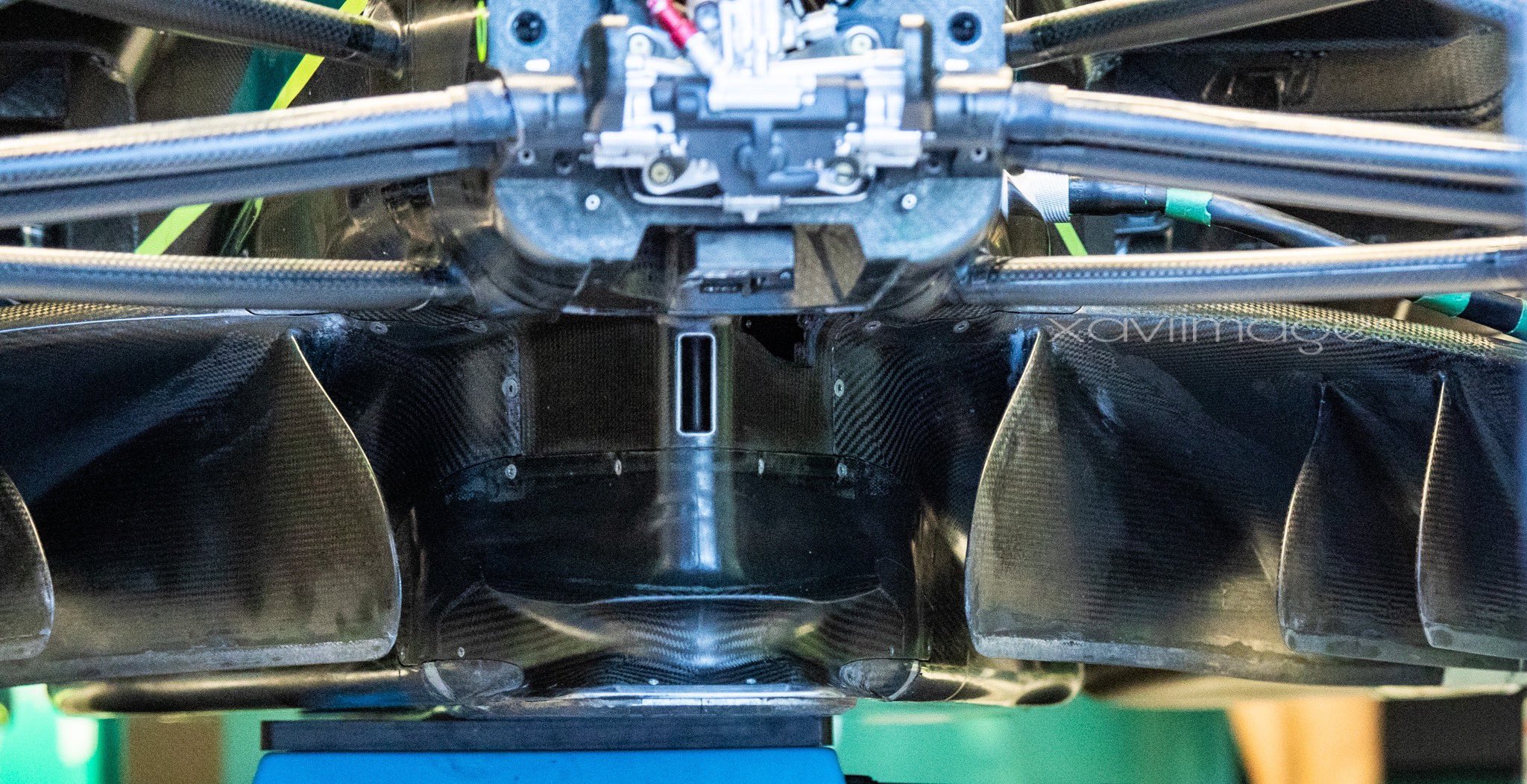

El Mercedes.








En: https://x.com/xavigazquez/status/1793939210228887653



Timoteo Briet: Good design of these parts is essential; in fact, as they are one of the first parts to receive the air flow, they must be perfectly designed. Any small variation conditions everything at the back

[GoVal]

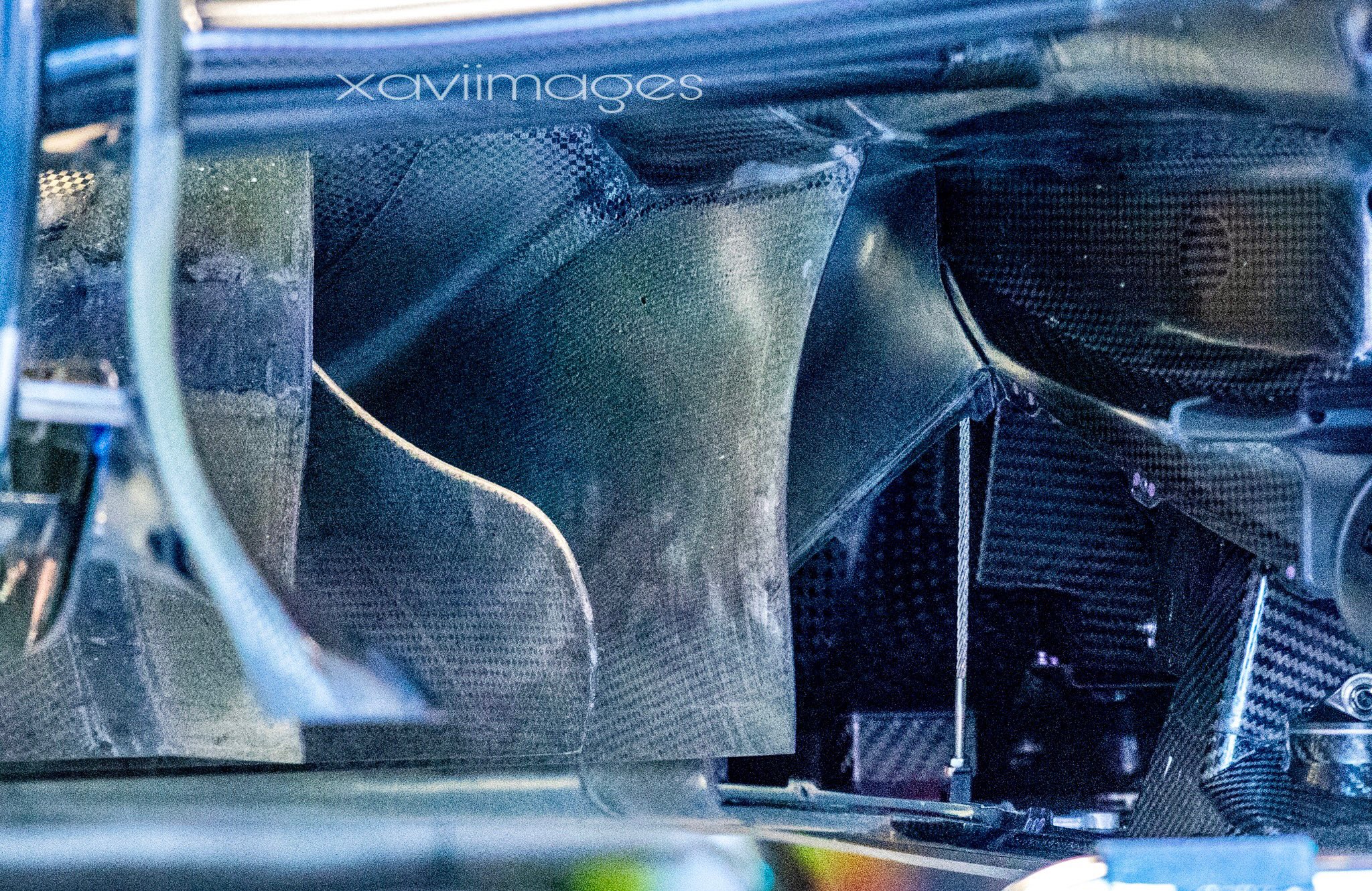

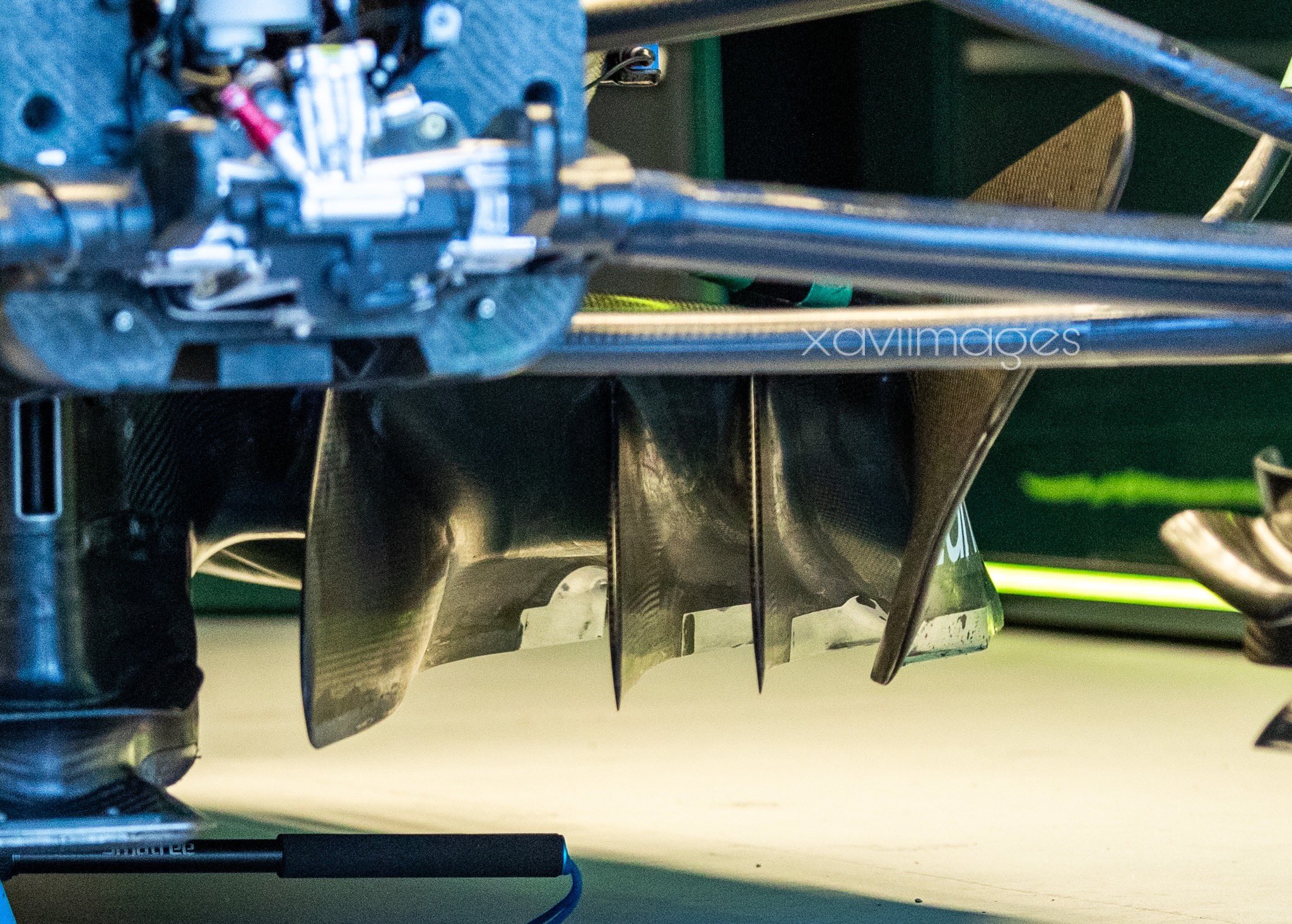

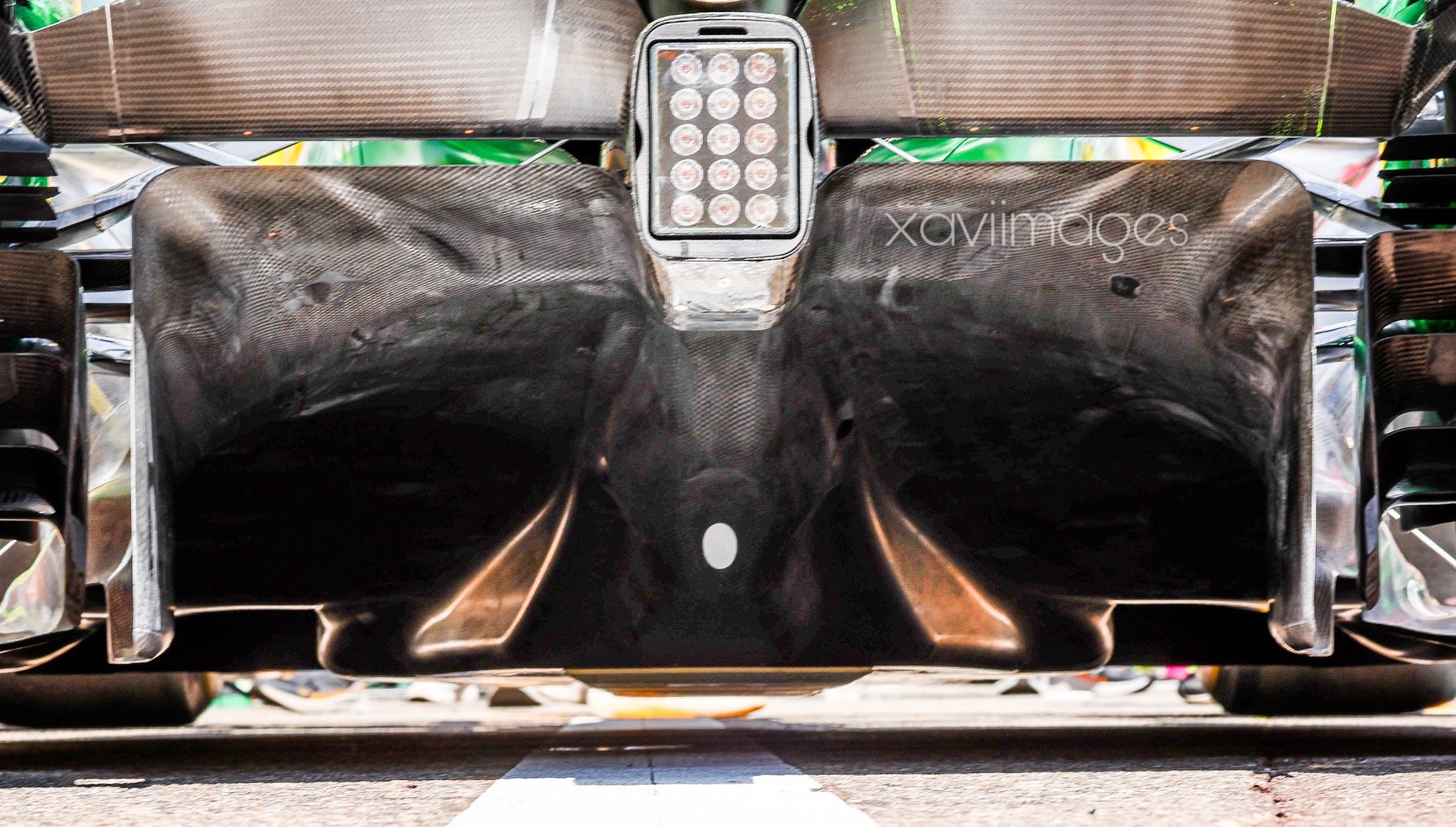

Aston Martin.












En: https://x.com/xavigazquez/status/1793923290567958884




Timoteo Briet: The flow Air start in ground, essential in order to allow the BEST downforce. VERY GOOD VIEW FOR STRAKES.

If the inlet of this mass flow is big, as is currently the case, the formation of a sonic boom is possible --> porpoising.... for that: SUSPENSION AND AERO WITH GOOD COMBINATION: that is: AEROPOSTRIG ¡¡¡¡

[GoVal]

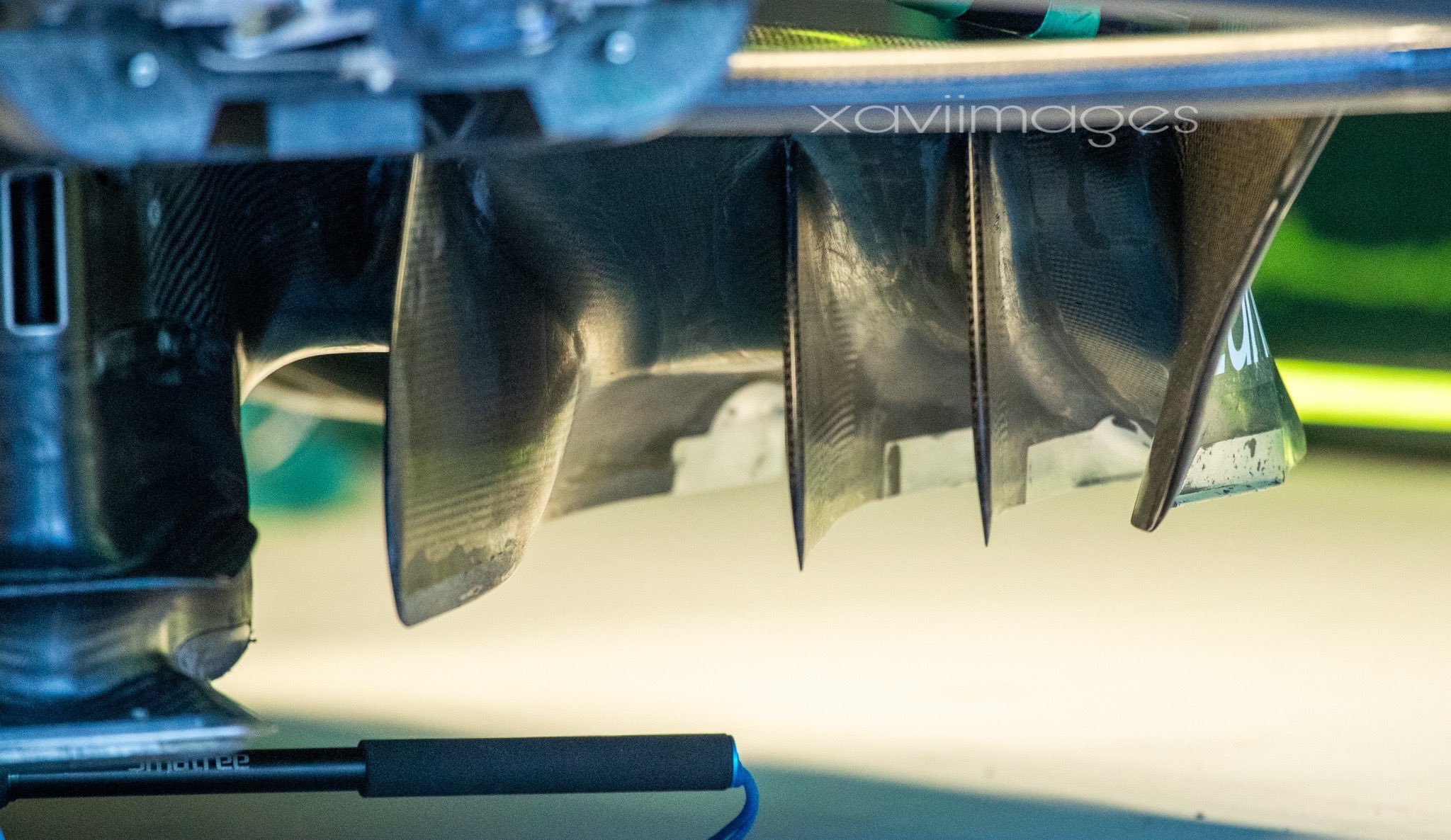

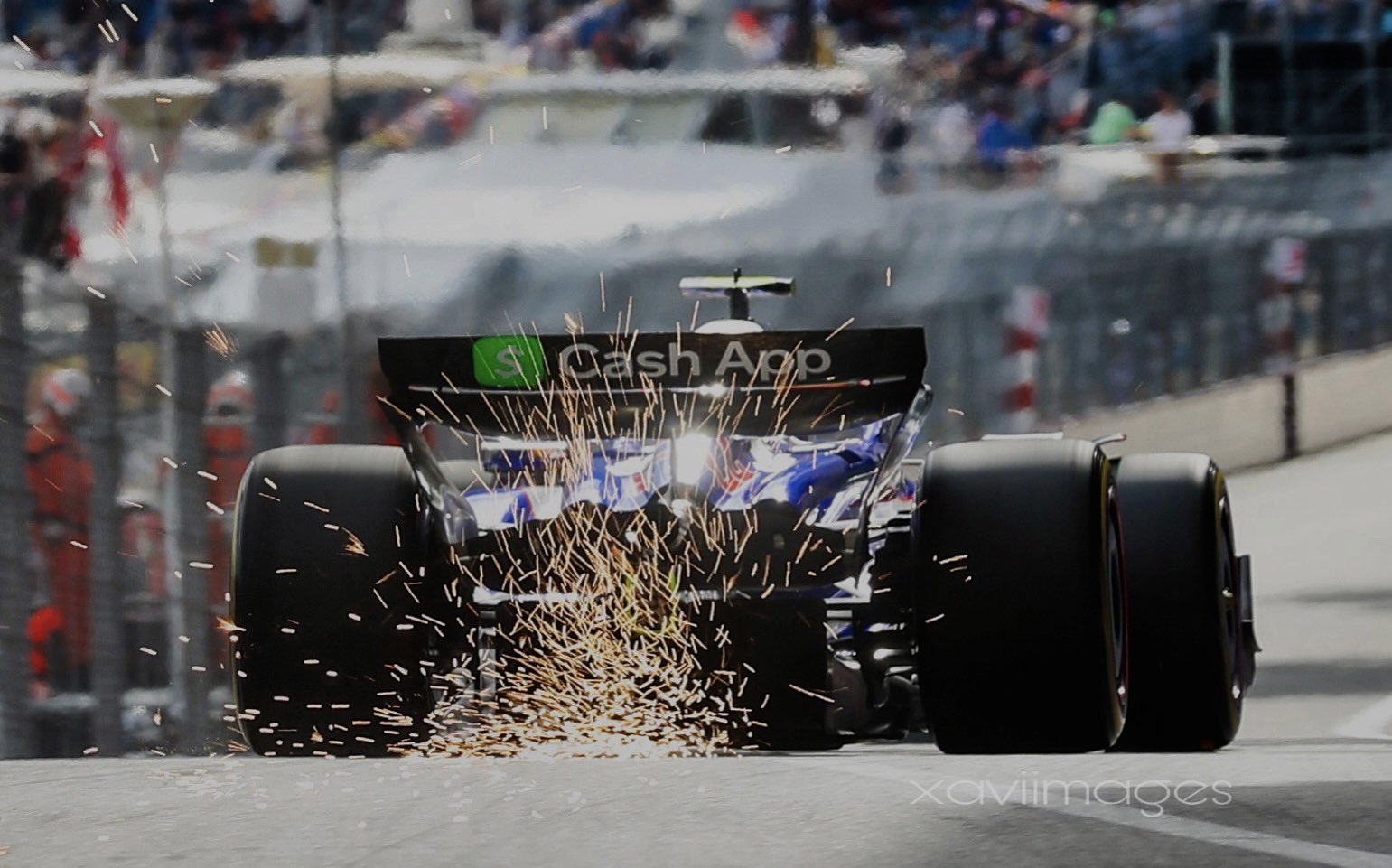

Williams.





En: https://x.com/xavigazquez/status/1793936211909775867

[GoVal]

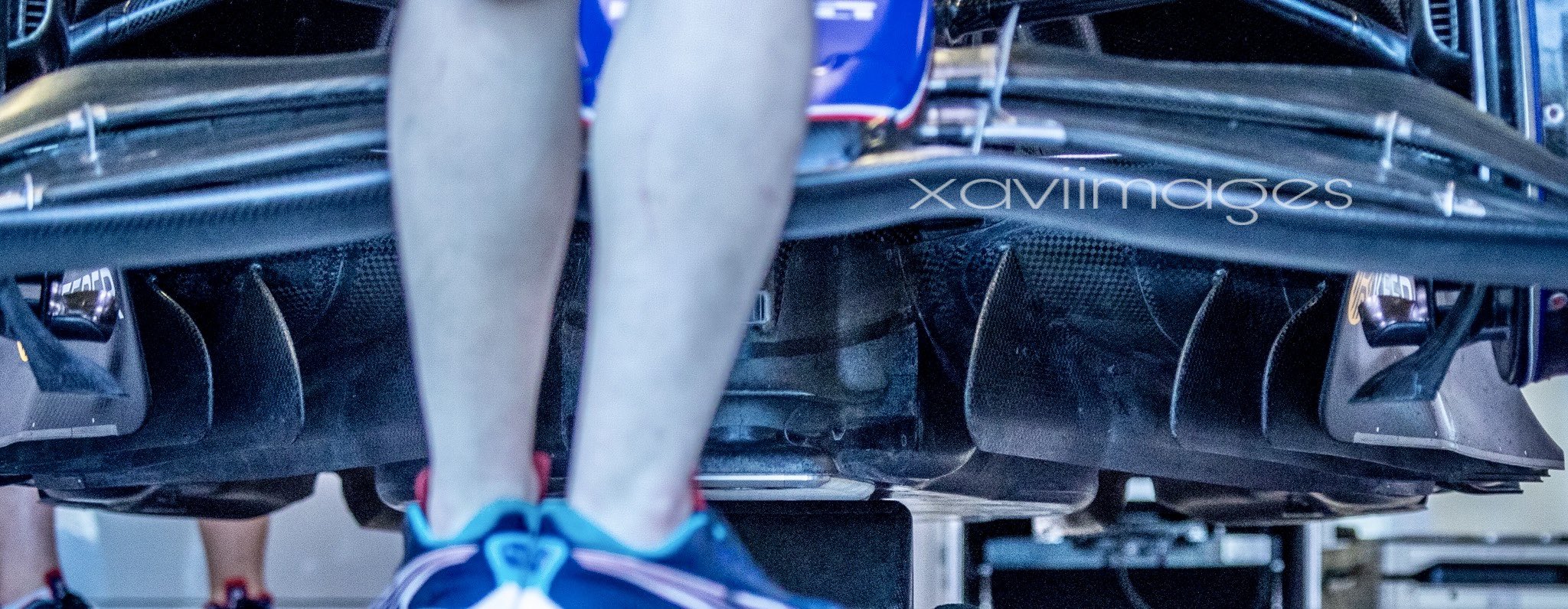

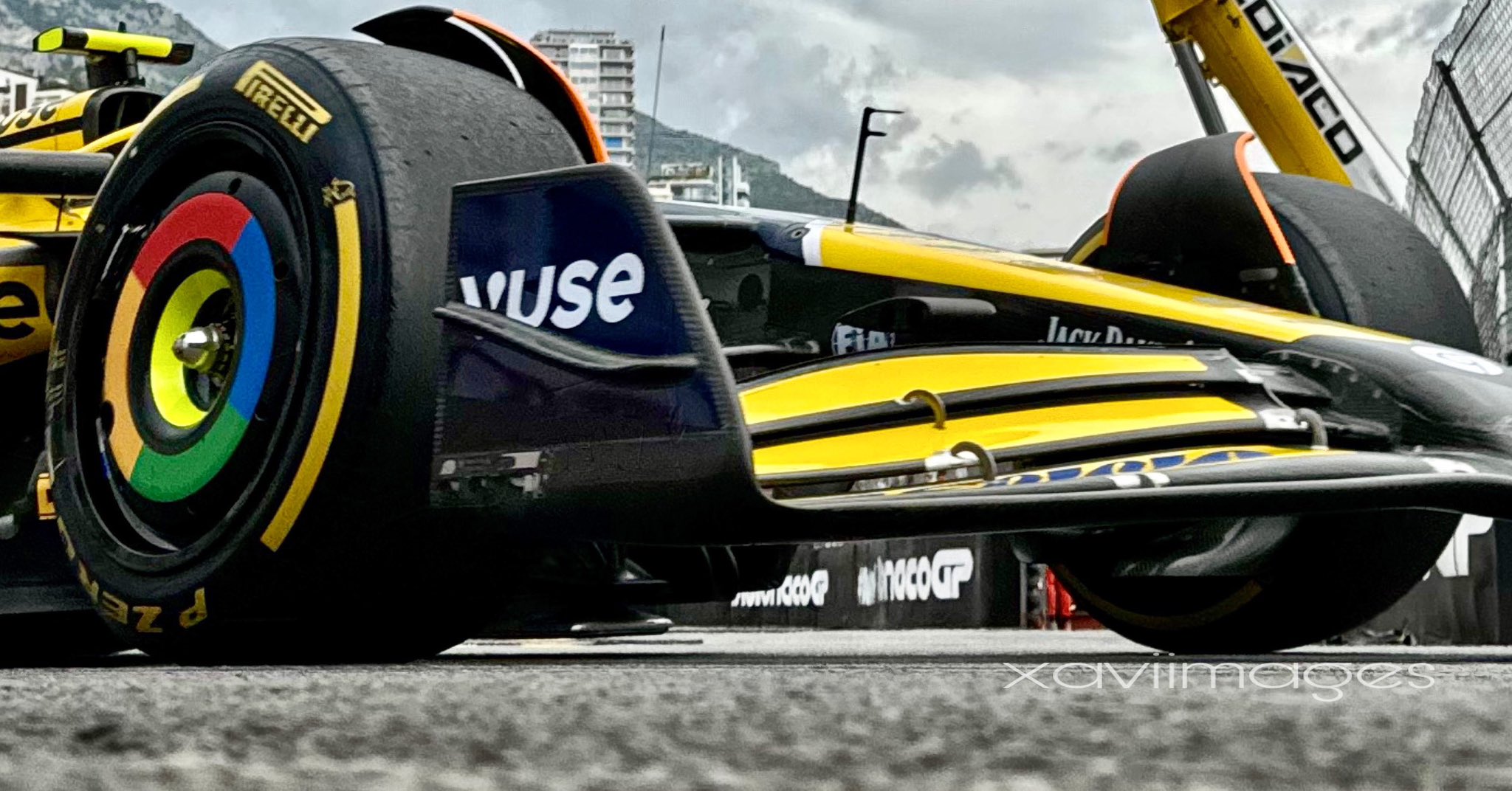

McLaren.









En: https://x.com/xavigazquez/status/1794006863962362063

[GoVal]

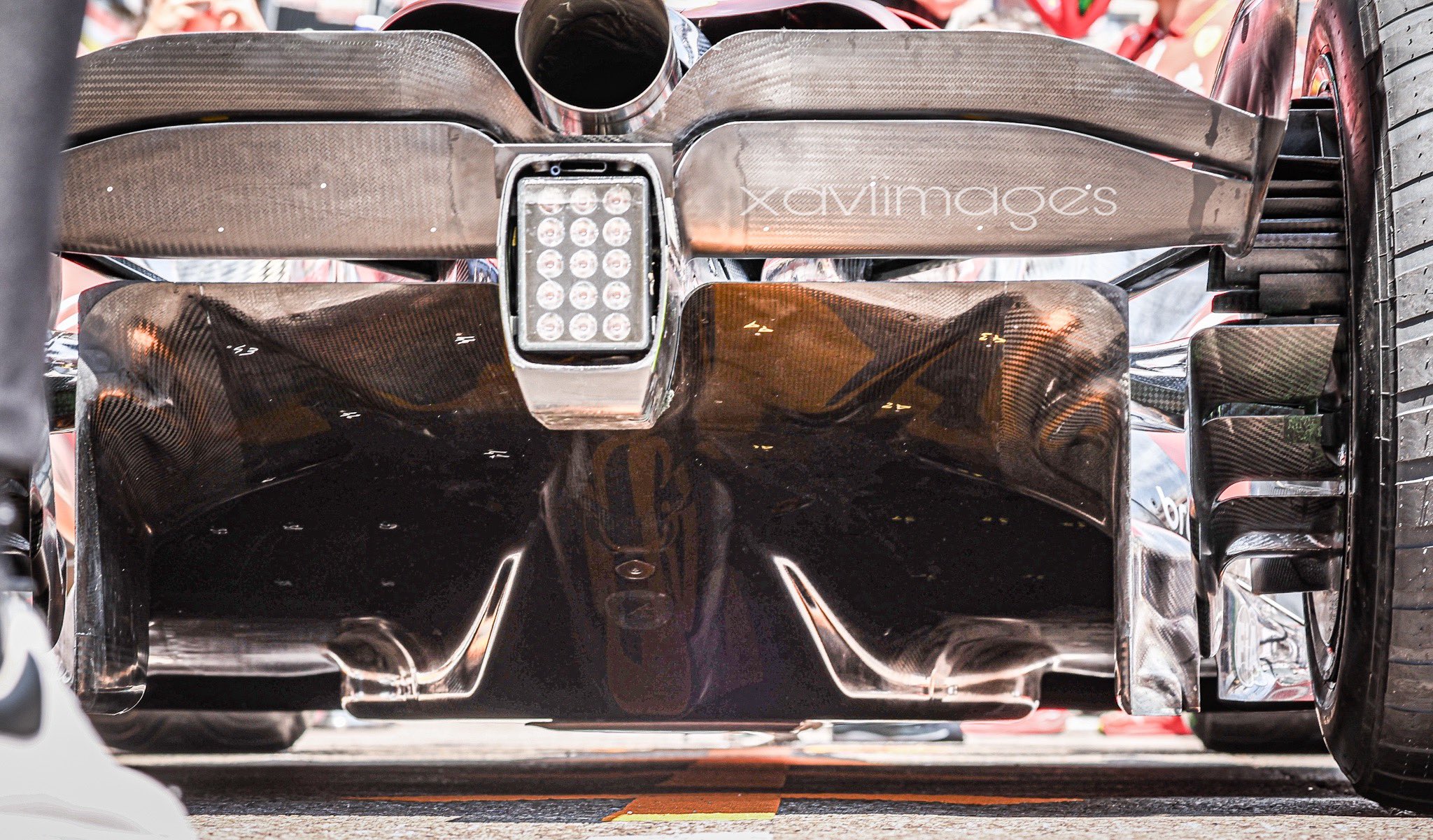

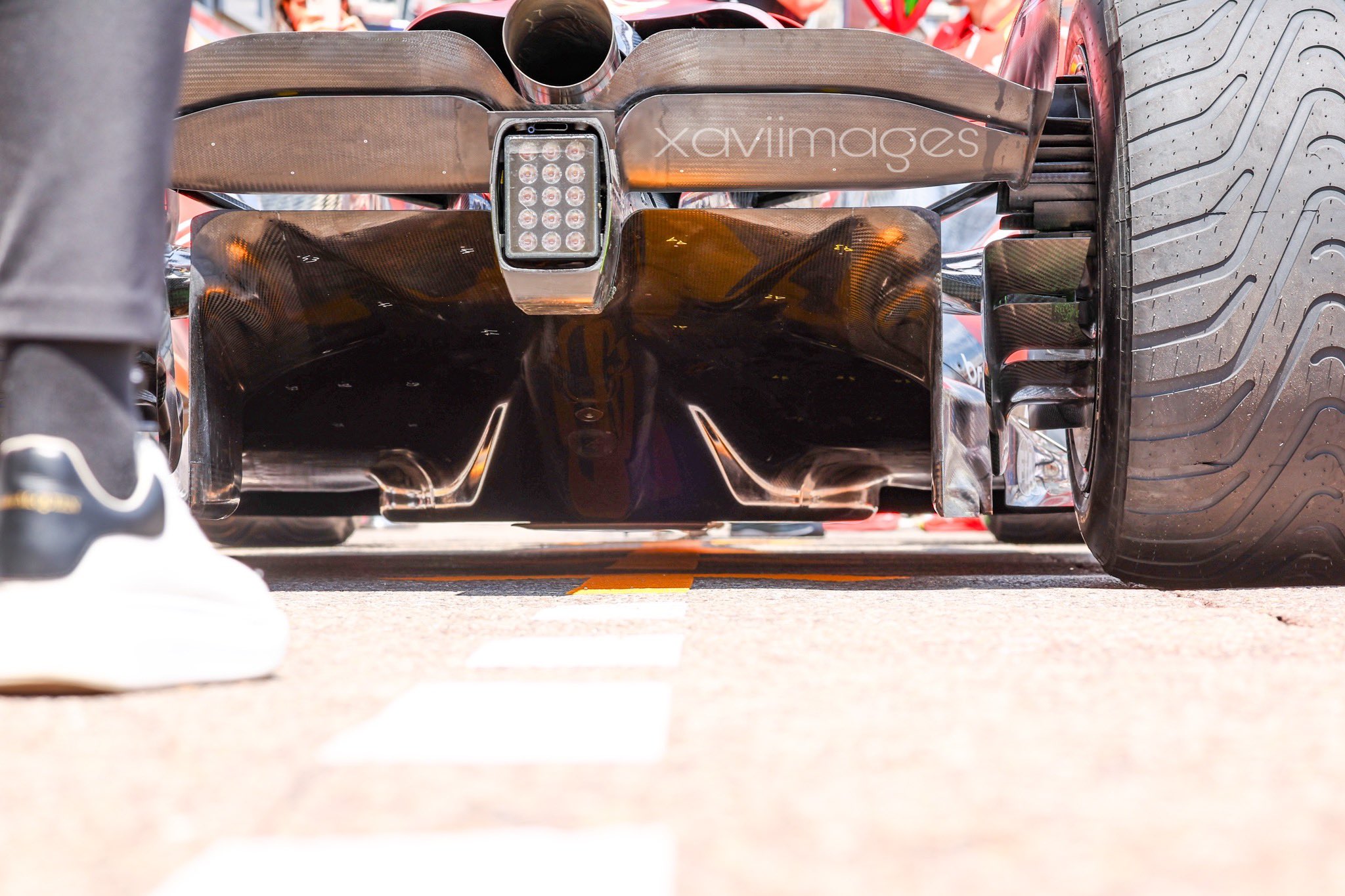

Ferrari.








En: https://x.com/xavigazquez/status/1794012488201064627



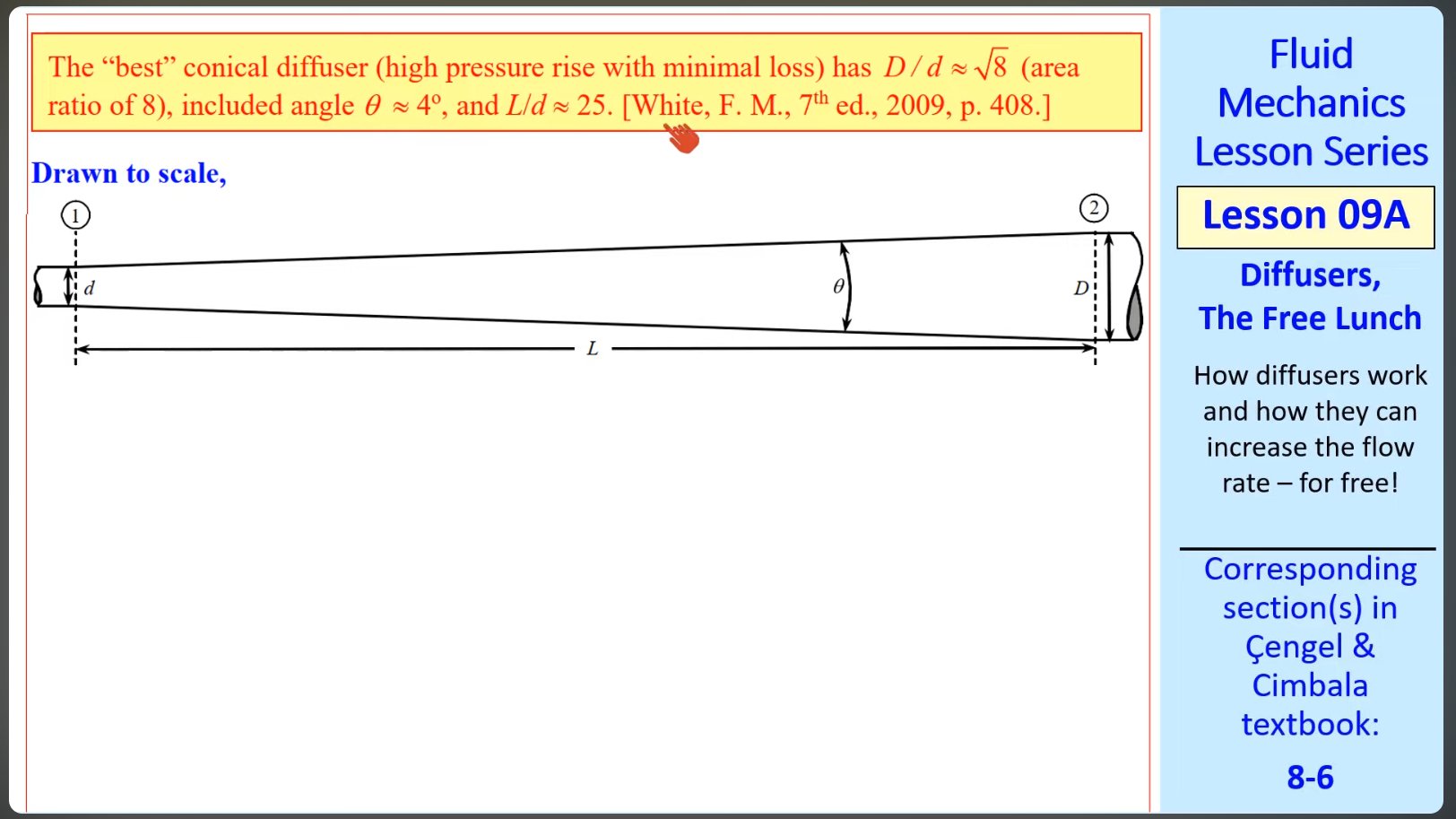

Timoteo Briet: The expansion zone of the air in the diffuser; expansion, because the pressure is reduced; there is more pressure in the diffuser than on the ground. The diffuser produces little downforce, despite having less pressure than the outside.

[GoVal]

Bryson Sullivan 🇺🇲 @NaturalParadigm · 2h

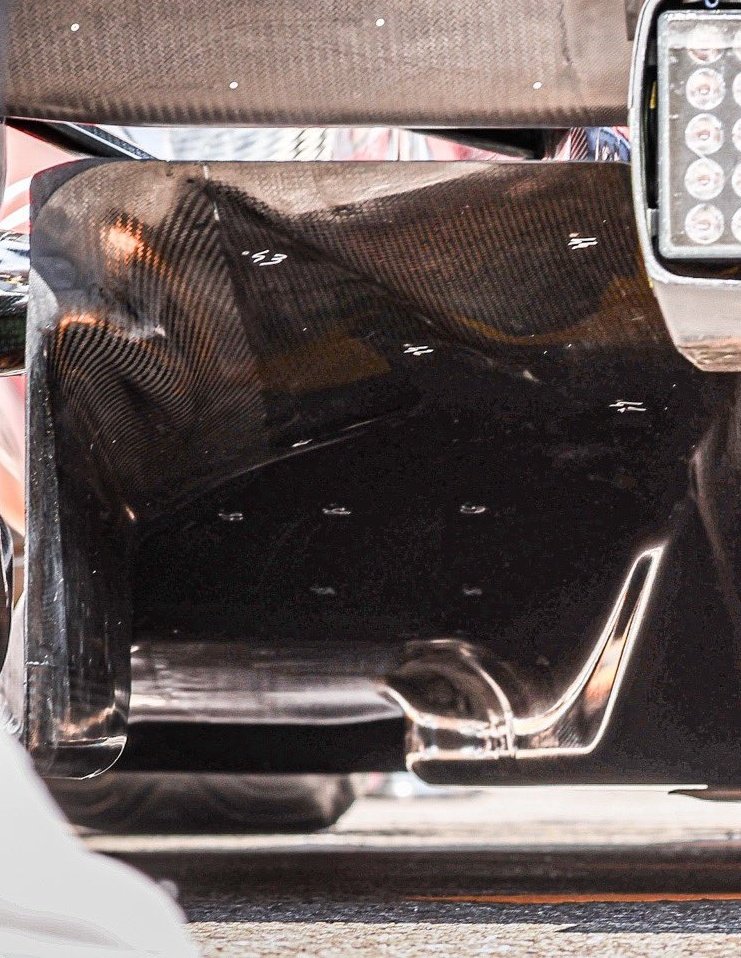

Great view at the SF-24 diffuser thanks to Xavi. Take a closer look at the numbers written on the surface, each one identifies a small hole drilled in the carbon that is connected to probes used to measure static pressure and evaluate aerodynamic performance. ⤵️







Timoteo Briet: It is impressive to see the pressure measurement points on the diffuser; it is essential to know the optimum angle of the diffuser (called expansion angle) in order to get the highest possible downforce from the ground.
